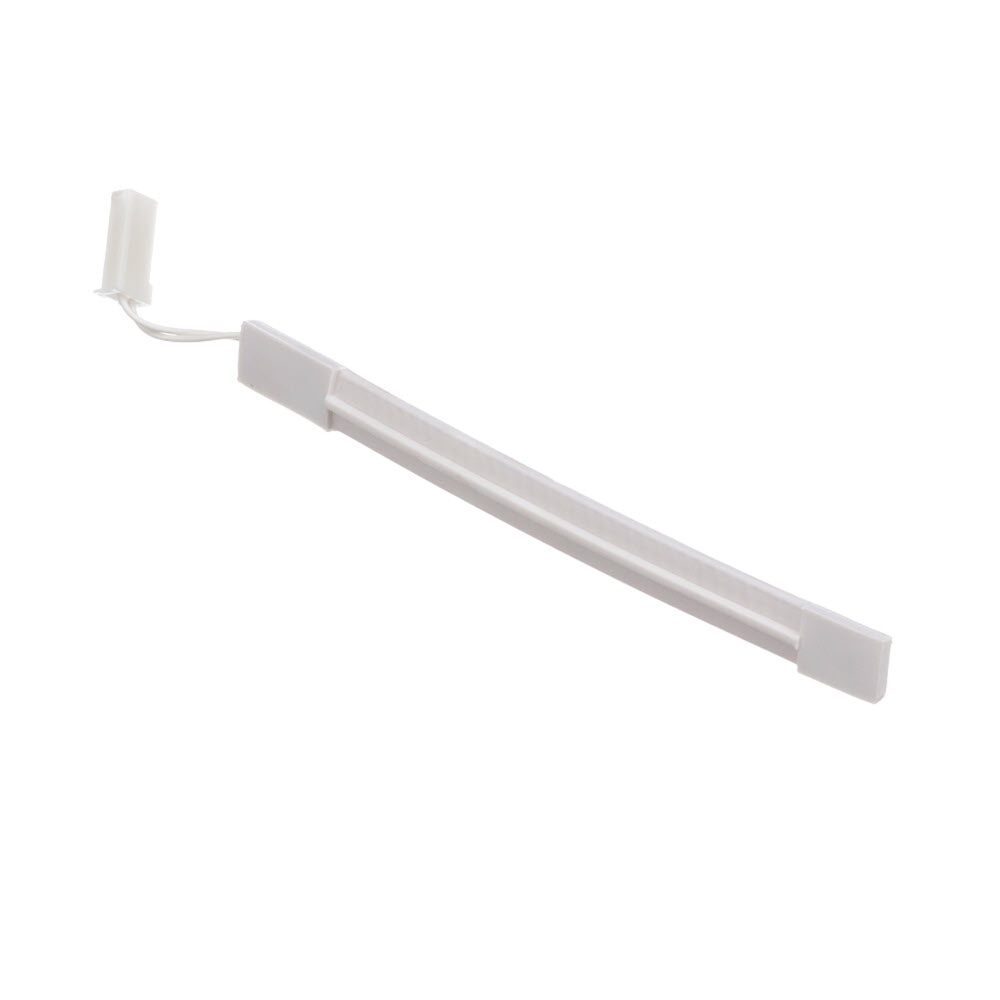

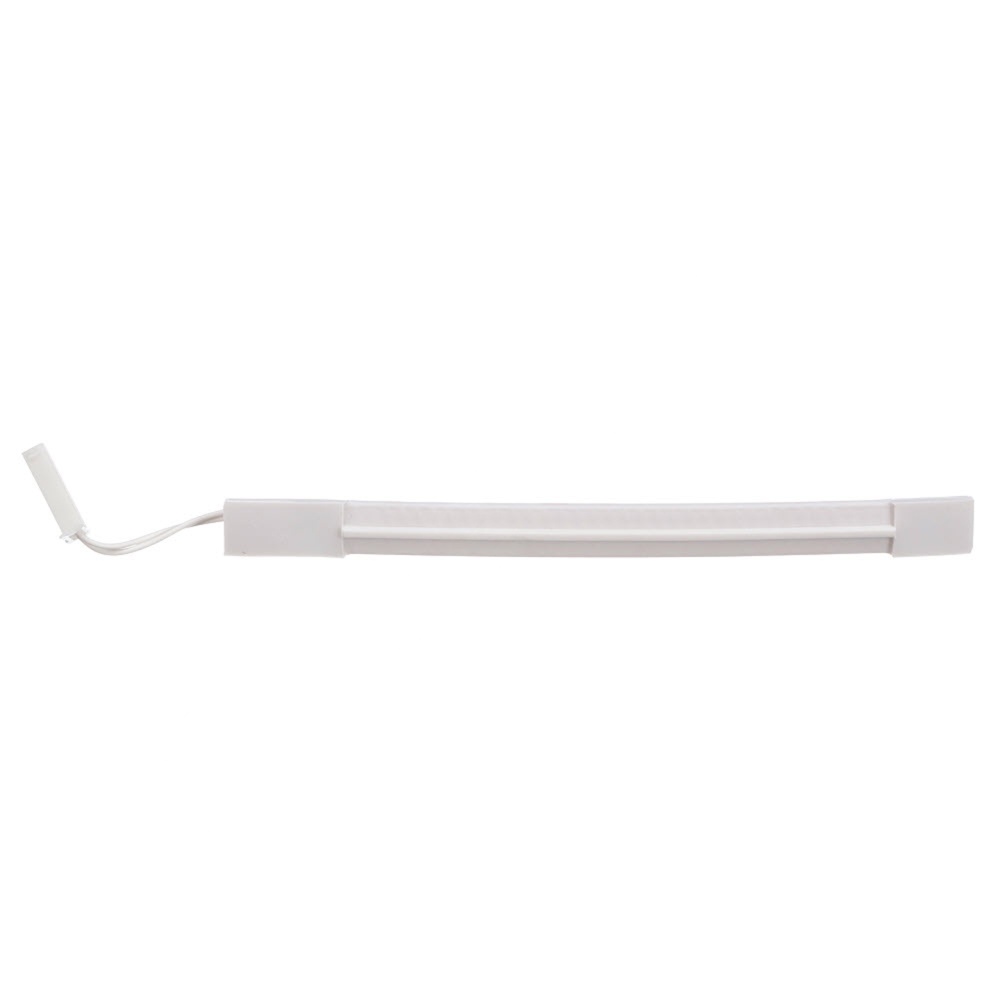

TAPE SWITCH 2 Positioning GT
5133731-3 | |
5133731 | |
Computed Tomography (CT) | |
Revolution Ascend | |
GE HealthCare Colombia S.A.S | |
GE HealthCare | |
Enter your approval number and submit to add item(s) to cart.
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Select your approver's name and submit to add item(s) to your cart
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Características
- Free length thin Tape switch®
- Rated voltage 5 V DC
- Suitable for use in CT scanner
- Used as security switches for emergency stop applications
Descripción del producto
The Tape Switch 2 Positioning Global Table is a specially designed part for use in nursing care products, CT scanner and other medical equipment as applicable. The free tape switch is constructed with bead, jacket, PET film, inter electrode insulating materials, upper and lower conductor. The switch is comprised of a sensing part and non-sensing part. The switch operates when the bead at the center portion of the tape is depressed by a load, so that the upper conductor in-contact with the bead is pressed to touch the lower conductor causing the circuit to turn on. When the load is removed, the upper conductor is restored to its original position to turn off the circuit.
Características adicionales
- Excellent sensing quality
- Easy to handle and portable
- Water proof
- Operating temperature ranges from 5° C to 40° C
- Intertek, UL Certified
- RoHS compliant
Artículo equivalente:
Tenemos las siguientes piezas equivalentes disponibles para usted. Estas son piezas de reemplazo compatibles. Estas piezas sin un hipervínculo se enumeran solo como referencia y no están disponibles para su compra en línea. Para obtener información adicional, comuníquese con el servicio al cliente
Artículo equivalente | Detalles de parte |
---|---|
5133731 | TAPE SWITCH 2 Positioning GT |
