Power-Off Brake Assembly

2391862
X-Ray
Revolution XRD
GE HealthCare Colombia S.A.S
GE HealthCare
Añadir a la lista de deseos
Iniciar sesión y agregar al carrito
Iniciar sesión y agregar al carrito
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


El artículo no está disponible en inventario con las cantidades seleccionadas. Por favor actualice la cantidad para continuar.

Características

  • Made of high quality material
  • High safety protection
  • Electromagnetic technology
  • RoHS compliant

Descripción del producto

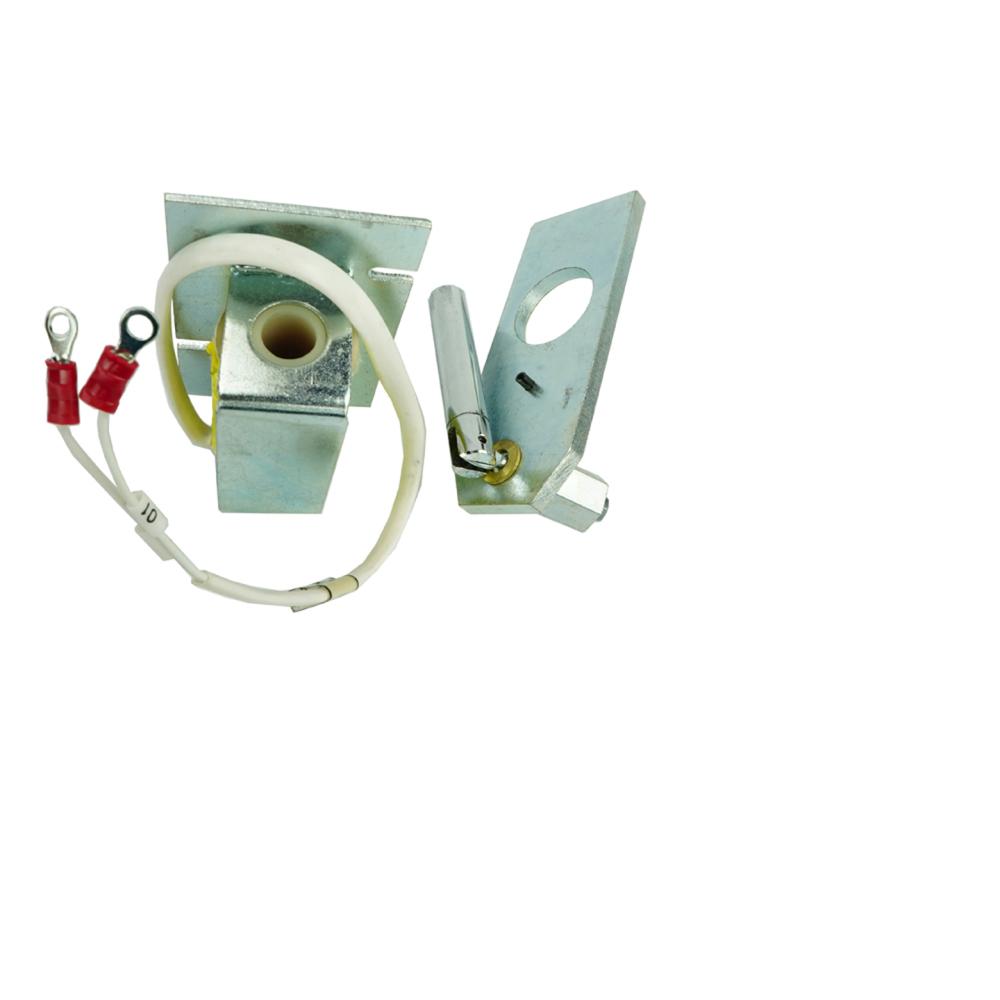

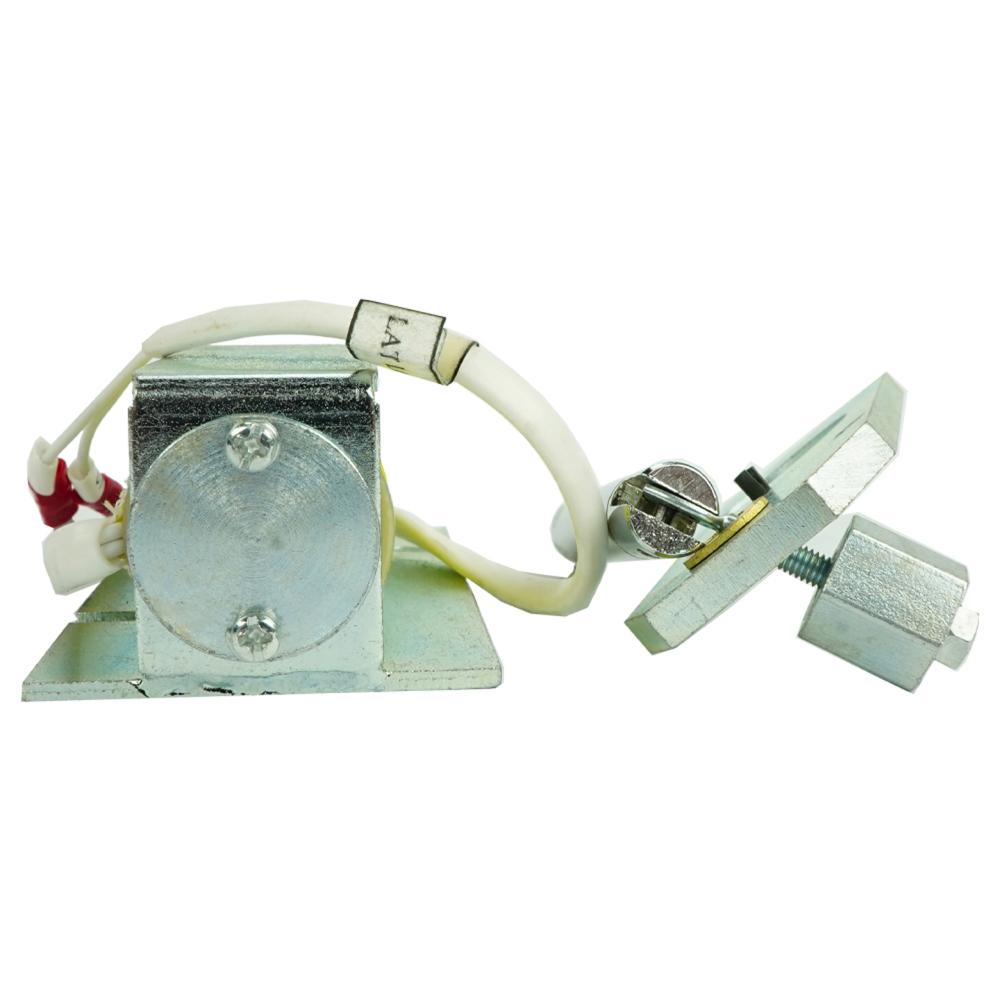

The Power-Off Brake Assembly consists of a bracket assembly, a rectangle brake coil assembly, a RoHS compliant wire, a coil frame, a thin wall soft pipe, a core axle, a coil connecting axle, a pan head screw, a spring lock, a flat washer, a guide nut, a hexagonal nut and a brake plate assembly. These parts together make up the completed assembly. The power-off brake is used in the OTS carriage system to fix the component in position. When the lateral lock system button is pressed, power passes to the lateral lock unit and moves the lock rod backwards. This part is an electromagnetic type lock and remains activated when the power is off. This part also acts as a safety system in OTS carriage. The assembly is being used in the machines like Revolution XR/d, AMX 4+, Definium 8000, Proteus XR/a, Discovery XR656, Optima XR220amx, etc.

Productos compatibles

Revolution XRd

Revolution XRd
